A leaking pool, if left unchecked or unnoticed can lead to expensive repairs far beyond the initial leak. Continually adding water and adjusting PH levels will no doubt be the least of your problems. If your leak is serious enough, it has the potential to undermine the supporting material beneath the pool structure which can result in a host of unwanted outcomes including; cracks to the pool structure itself, errosion of soil causing pool decking to sink, cracked underground pipe fittings and concrete due to movement, damage to the lawn, gardens and more. When calculating the true cost of a pool leak, it can really add up.
Did You Know
A pin-hole leak can waste 3500 litres a day, which is about 3 times the water a family of four consumes each day. To put that into perspective:
Water Supply | Per Day | Per Week | Per Year |
---|---|---|---|
Town Water | $12.25 | $85.75 | $637.00 |
Tank Water | $63.00 | $441.00 | $22,995.00 |
Town Water Supply: Calculated off $3.50 per kilolitre.
Tank Water Supply: Calculated off $180 per 10,000L water truck load.
* Average water usage per person, per day: Approximately 380L.
* Town water cost includes: QLD state bulk water price and distributor price.
If your pool is leaking water, don't delay. Give us a call - 1300 851 842
Our "Essentials" Leak Detection Package is Just $450 (+GST) and Includes:

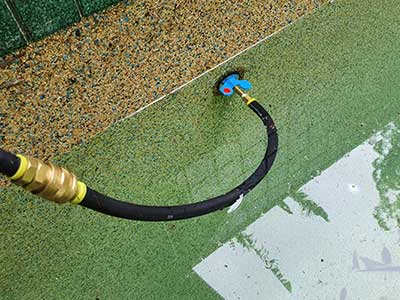

Hydrostatic pressure testing of return, suction lines, auto-cleaner lines, in-floor cleaner lines, waterfall lines, vacuum lines, air lines etc.
Close visual inspection of the pool structure, plumbing lines, filter, heater, chlorinator etc.
Dye testing of skimmer boxes, return lines, light fittings etc.

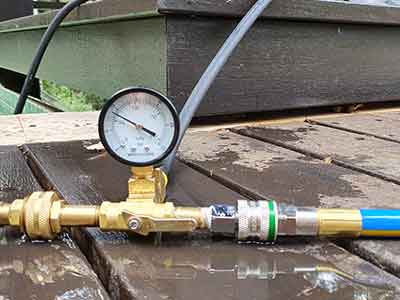

If the hydrostatic pressure test confirms a drop in pressure on any line, we will then carry out a pneumatic pressure test and pin-point the leak location with our electro-acoustic listening equipment.
Our "Essentials Add-on" Leak Detection Package is an Additional $250 (+GST) and Includes:
Pneumatic pressure testing of all lines with confirmed pressure loss from the Essentials leak detection package.
Trace lines using the electro-acoustic listening equipment to locate the leak location.
Finding a pool leak can have it's fair share of challenges and is not always straight forward as you'd expect. The process of testing a pool for leaks is one that takes time and must be completed in stages.
The first step in leak testing any swimming pool is to figure out if the pool is actually leaking. A surprising amount of "pool leaks" are actually just periods where the water is evaporating quickly due to environmental conditions. If you are new to owning a pool then you will not be familiar with evaporation rates or what you should consider as normal evaporation rates for your pool. The actual amount of water that your pool will lose to evaporation will be unique to your pool. Factors such as your geographic location, ambient temperature, water temperature, direct sunlight and cross winds will all have an effect on your evaporation rates as will whether you use a solar blanket cover at night.
If you suspect you have a pool leak, the very first thing you can do to confirm this is carry out the Bucket Test. This test in one that can be easily carried out by the pool owner to save time, and a service fee from the leak detection specialist. There are many videos on Youtube demonstrating the bucket test, but the basic instructions are listed below.
1. Using an open top container such as a plastic juice pitcher you will sit the container inside of the pool such that it is partially filled with water. Our preferred method is to use rocks in the bottom of the container and then sit the container on a stair or ladder step such that part of the container is below water level and part is above.
2. You then add water into the container until the water inside the container and the water level in the pool are exactly the same.
3. Wait 24 hours and then check to see if the water level in the pool is lower than the water level in the container. The difference between the two would be rate of water loss in your pool. If you do this test and the water level in the pool always matches the water level in the container then you do not have a leak in your pool - your water loss is a result of evaporation. Using a solar blanket at night over the pool will dramatically reduce how much water your pool loses through evaporation.
Note: When you are doing the bucket test it would be a smart idea to record the weather patterns during this time period. The outside temperate (at both day and night) as well as cloud cover (direct sunlight the pool gets) as well as the amount of wind that you have. Most importantly you need to note if it rained or not as rain will likely invalidate your test results.
If you suspect a leak, there are a couple of fast and easy DIY ways to confirm. Some tests below are simple, while others are a bit more complex.
Dye Test
A dye test is best to use if you see a tear in your liner or a visible crack in your pool. Dye tests can be found at your local pool or home and garden store. You can also use a dye test to test areas such as screws, fittings, skimmers, or any other area at a higher risk of a leak. Have everyone exit the pool, turn off the pool equipment, and wait until the water is calm. Then slowly apply a small yet visible amount of dye directly to the suspected area. What you are looking to see is if the dye remains and gradually dissipates — or if it is sucked into the suspected area.
Bucket Test
All you need for a bucket test is a clean empty bucket, a heavy rock or brick, and duct tape. You will need to perform the bucket test when it is not raining, and when the pool will not be used for 24 hours. If possible, select a day that is not particularly humid.
Pressure Test
A pressure test is more complex, but it is possible to do it yourself with the proper tools.
With over $100,000 worth of swimming pool leak detection equipment, we're very well equipped to take on the most elusive pool leaks. Some of the equipment we use to detect leaks includes:

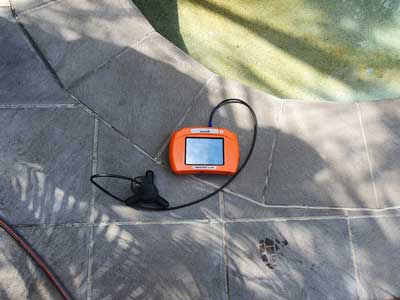

Electro-acoustic listening device (Sewerin A200 Pro)
FLIR T660 thermal imaging camera
Hydrostatic and pneumatic pressure testing equipment

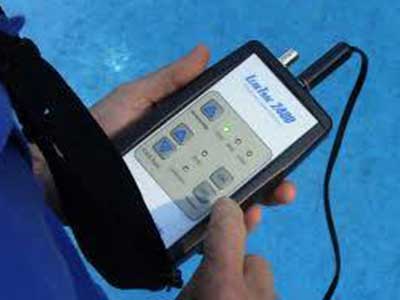

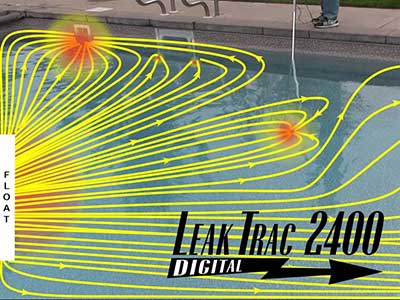

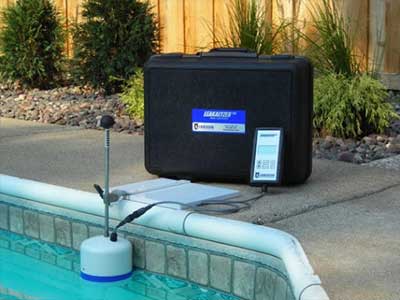

Leak Trac 2400 for vinyl lined and fibreglass pools
Omni & uni-directional hydrophones & pipe-mics
Pipe and cable locating devices to locate underground pipes and electrical cabling
Microwave moisture detection equipment
CCTV inspection cameras with dye injectors
10 signs that you may have a pool leak.
Pool loses more water than regular evaporation.
Pool has air in the system
Broken fittings
Rust forming around skimmer and return ports.
Holes in liner that have been patched
There are soggy spots around the pool
Cracks in pool floor
You add water more than once a week
Pool deck is sinking or lifting
Equipment loses prime
Is your pool leak draining your wallet? Give our team a call today for a FREE quote.
Electro-acoustic Water Leak Detection
When it comes to detecting leaks in underground or internal wall water pipes, Highpoint Solutions should be your first point of call. Our best-in-class acoustic measuring technology coupled with intelligent analysis functions, allows us to pin-point any below-surface water leak with extreme accuracy, safety and reliability. Our highly skilled leak detection technicians have many years experience in detecting water leaks and locating underground pipework.
Our electro-acoustic water leak detection capabilities include:
Detection of leaks in water pipe networks
Swimming pool leak detection
Underground water leaks (gardens, concrete slabs, driveways, paved surfaces)
Water mains & fire mains
Internal water leaks under tiles, concrete, bathrooms, internal walls, kitchens
Moisture ingress and water leaks caused from rain
